Fume Hoods and Manual Wet Benches
NexChem fume hoods and wet benches deliver precision airflow and chemical-resistant construction for semiconductor fabs, laboratories, universities, and R&D facilities. Available in FM-4910 polymer for acids/bases or stainless-steel solvent-rated designs for IPA, acetone, and flammables.

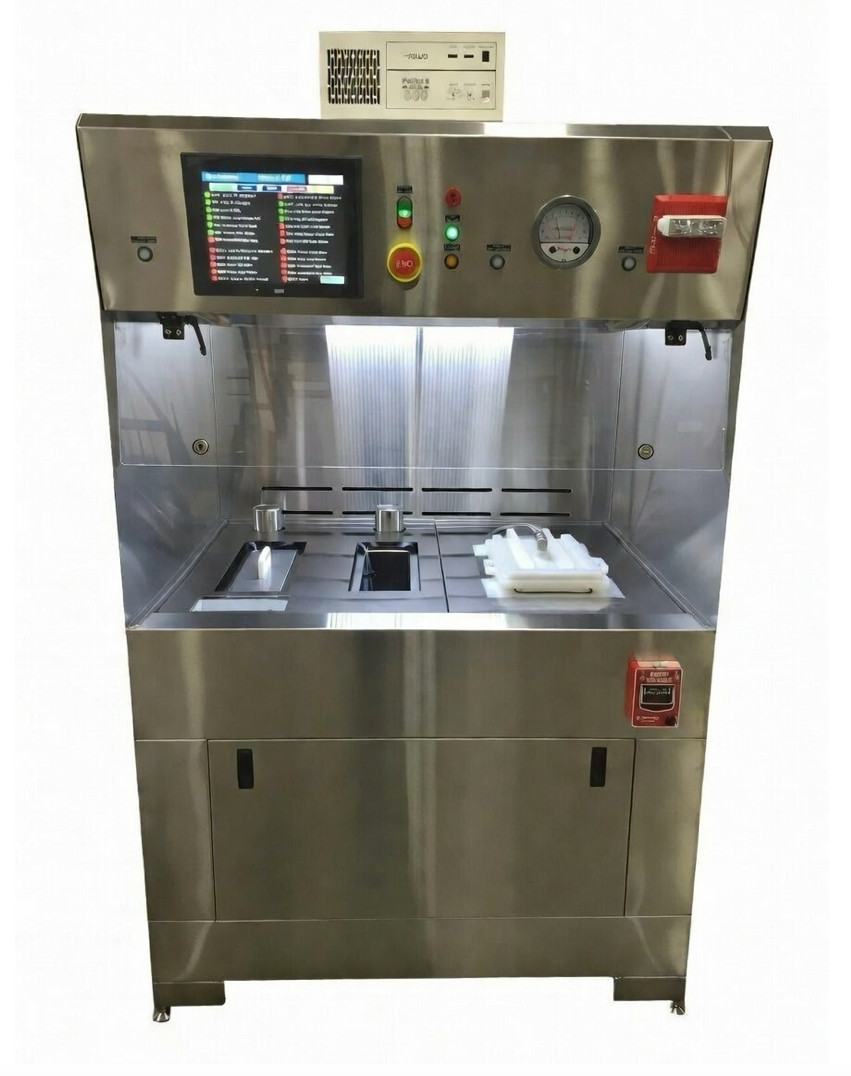

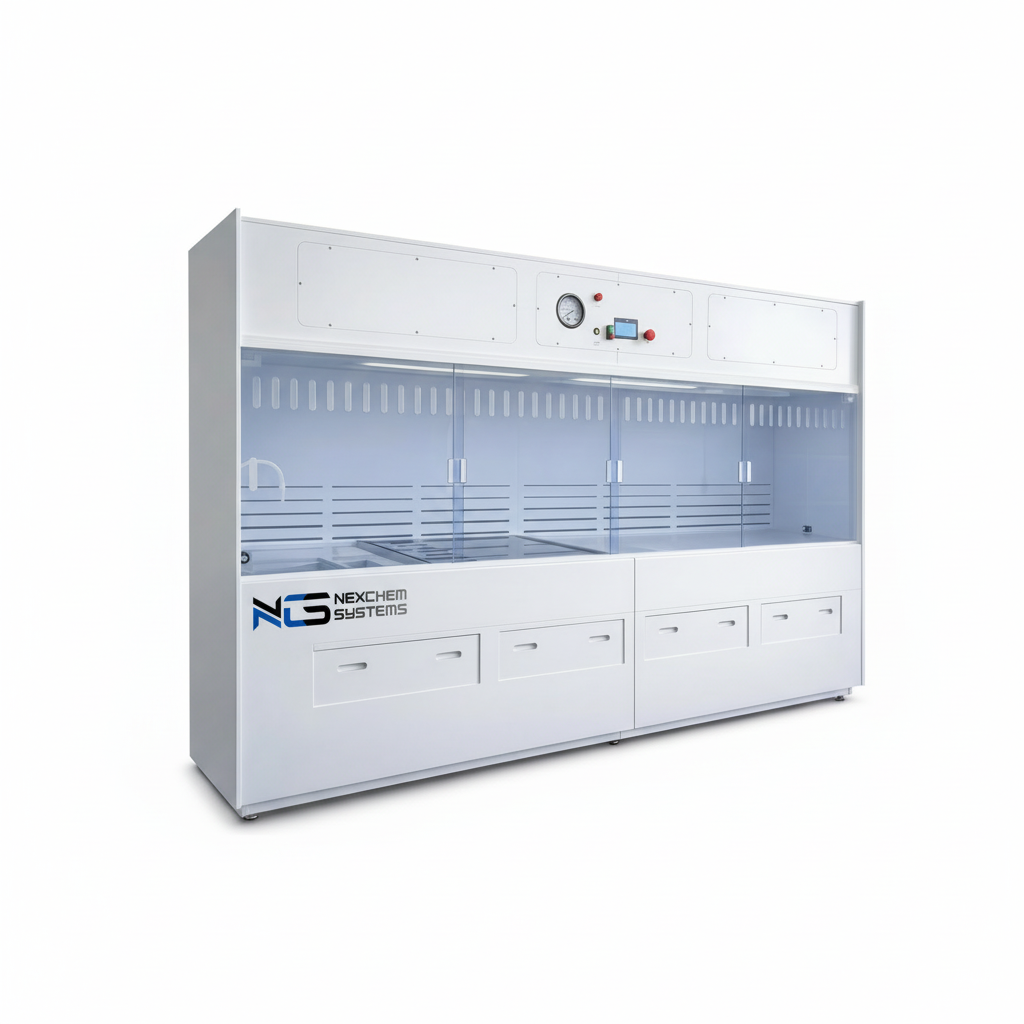

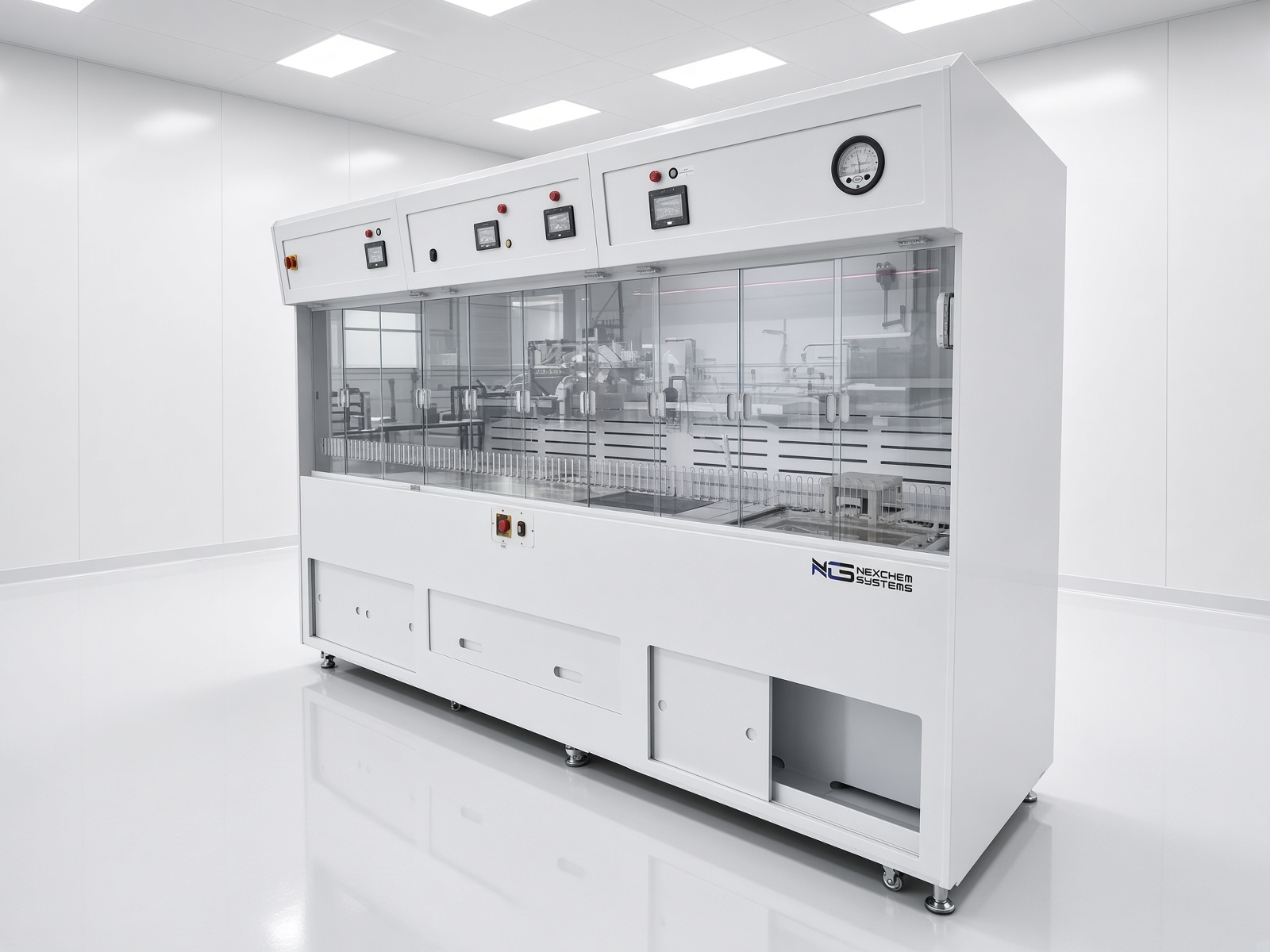

Fume Hood
At the core of every Gamma system is a fully enclosed fume hood architecture designed for containment, airflow stability, and long-term compliance.
Enclosed Fume Hood
Fully enclosed fume hood shell (default Gamma architecture)
Optimized Airflow
Optimized airflow geometry with dedicated exhaust connection
High-Grade Polymer Construction
FM-4910-rated polymer construction (CRP-1 available)
Solvent-Rated Steel Option
Stainless-steel solvent-rated configurations available
LED-Lit Viewport
Large clear-view sash with LED work lighting
Easy Service Access
Rear service access for utilities, filtration, and maintenance
Ventilated Storage
Ventilated lower storage compartment
Cleanroom Ready
Cleanroom-compatible, chemical-resistant interior surfaces
Compliance Ready
Compliance-ready design supporting UL, SEMI S2, CE, and third-party electrical inspections

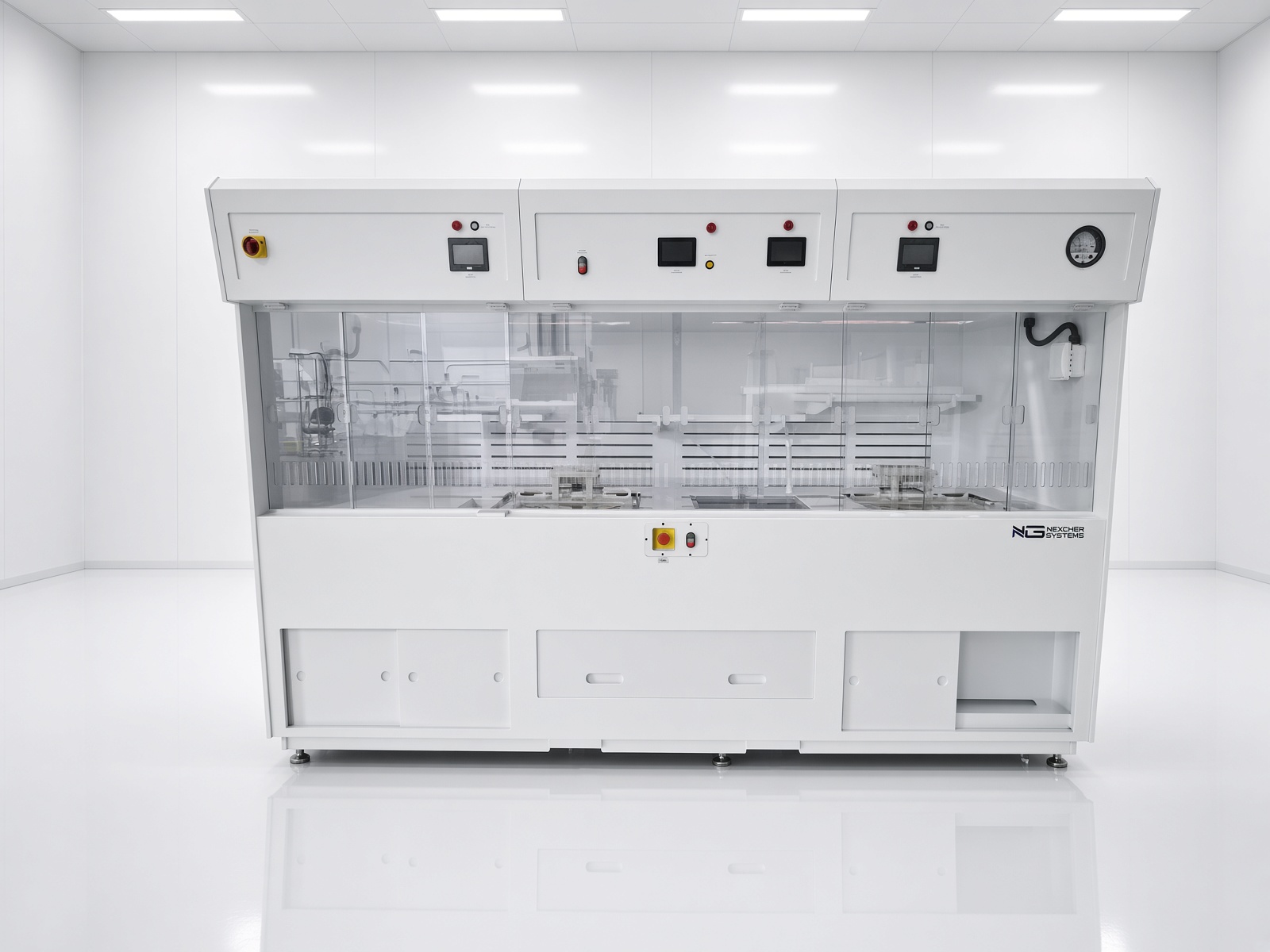

Manual Wet Bench
This wet bench configuration is a simplified, open or semi-open variant of the same Gamma platform, optimized for hands-on processing where full enclosure is not required.
Ideal For
- Manual wet processing - Academic laboratories - Process development and R&D - Low-to-medium volume applications
Key Features
- Open access work area - Shared Gamma platform architecture - Utility-focused configuration with reduced enclosure - Upgrade path to full containment if requirements change
Integrated Utilities & Work Area Options
- DI water manifolds - Rinse guns - Integrated utility sink with gooseneck faucet - GFCI-protected electrical outlets - Ergonomic operator control panels
High-Performance Recirculation Tanks
The NexChem high performance recirculating process baths are designed to provide safe, reliable, clean operation in conjunction with a variety of pneumatic bellows recirculating pumps and filters. Recirculation rates will depend upon the exact combination of bath, pump size, and filter porosity.
Quick Dump Rinser (QDR)
The NexChem Quick Dump Rinse (QDR) Bath is a high-efficiency rinsing module essential for semiconductor wet processing, designed to rapidly and thoroughly remove residual chemicals, particles, and contaminants from silicon wafers after etching, cleaning, or other chemical steps.
Process & Performance Enhancements
Enhance your Gamma system with a range of integrated modules and accessories designed to improve performance, safety, and ergonomics.
Megasonic Tanks
Advanced megasonic technology for sub-micron particle removal and enhanced cleaning uniformity.
Ultrasonic Tanks
High-frequency ultrasonic agitation to improve cleaning efficiency and reduce cycle times.
Automated Parts Loading or Lift Assist
Ergonomic solutions to support throughput and reduce operator strain.
Rear Service Access
Dedicated maintenance area for pumps, plumbing, reservoirs, and filtration assemblies.
Carboy Collection Interface
Supports reusable or disposable containers for safe chemical waste capture.
Fire Suppression System
CO₂ suppression option for enhanced operational safety.
Ventilated Lower Storage
Exhausted compartment for chemicals, tools, or support equipment.
Operator Control Panels
Ergonomically placed controls and safety interfaces for intuitive operation.
Protected Power Outlets
GFCI-rated electrical connections for safe in-hood power distribution.
Integrated Utility Sink & Gooseneck Faucet
Built-in sink with gooseneck faucet providing flexible water access for rinsing, cleaning, and general workflow support.
Why Gamma
Why Gamma
One standardized platform across multiple applications
Safety-first design simplifies EHS and compliance reviews
Modular architecture supports future upgrades
Faster quoting, engineering, and delivery
Premium performance without custom-tool complexity
Ready to configure your Gamma Series?
Submit a Request for Quote to start a conversation with our application engineers. We'll help you find the right configuration for your specific process needs.
