IPA Vapor Marangoni Gradient Dryer
The NexChem Systems Delta Series IPA Vapor Marangoni Gradient Dryer is a high-performance wafer drying solution engineered for defect-free, watermark-free drying following wet chemical processing. Utilizing a controlled IPA vapor Marangoni effect, the Delta Dryer delivers consistent surface tension gradients that drive uniform liquid removal without mechanical stress or particle generation. Designed for seamless integration with NexChem wet benches or as a standalone module, the Delta Series supports high-purity processes, repeatable results, and scalable automation for advanced manufacturing environments.
Process Technology
Controlled Marangoni Gradient Drying
The Delta Series utilizes a precisely controlled IPA vapor zone introduced at the wafer-liquid interface during withdrawal from the final rinse. As IPA concentration increases at the meniscus, surface tension is locally reduced, creating a surface tension gradient that uniformly pulls DI water downward and away from the wafer surface.
Eliminate Watermarks
Ensures a perfectly dry, spot-free surface every time by removing liquid at the meniscus.
No Streaking
Prevents streaks by maintaining a uniform surface tension gradient during the entire withdrawal process.
Particle Control
Reduces particle redistribution and contamination for high-purity processing.
Stress-Free Drying
Avoids centrifugal stress and vibration common in spin drying, protecting delicate features.
Structural Protection
Protects fragile and high-aspect-ratio structures that can be damaged by mechanical drying.
Precision Automation
Drying performance is governed by controlled vapor, withdrawal velocity, and exhaust stability managed via recipe-driven automation.
Key Features & Capabilities
IPA Vapor Marangoni Drying Process
Gradient-Controlled Vapor Introduction for uniform drying
Dry-In / Dry-Out Capability when integrated into automated wet benches
FM-4910 Compliant Materials
High-Purity PFA / PTFE Wetted Components
Minimal IPA Consumption through optimized vapor control
Low Defect, Low Particle Drying Performance
Designed for Semiconductor, Advanced Packaging, MEMS, and Precision Manufacturing
System Configuration Options
The Delta Series is available in multiple configurations to meet both manual and automated process requirements:
Inline integration with NexChem wet benches

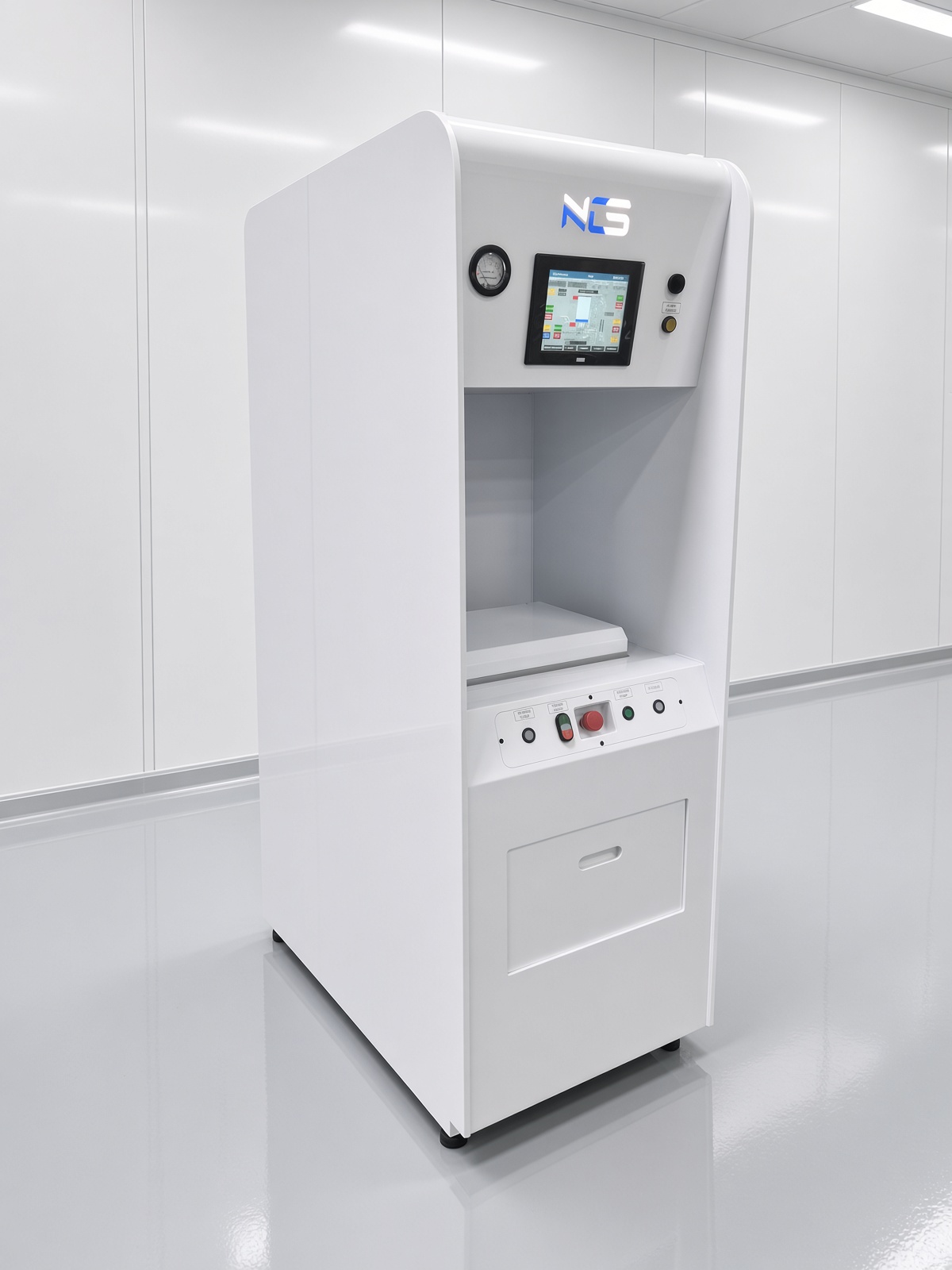

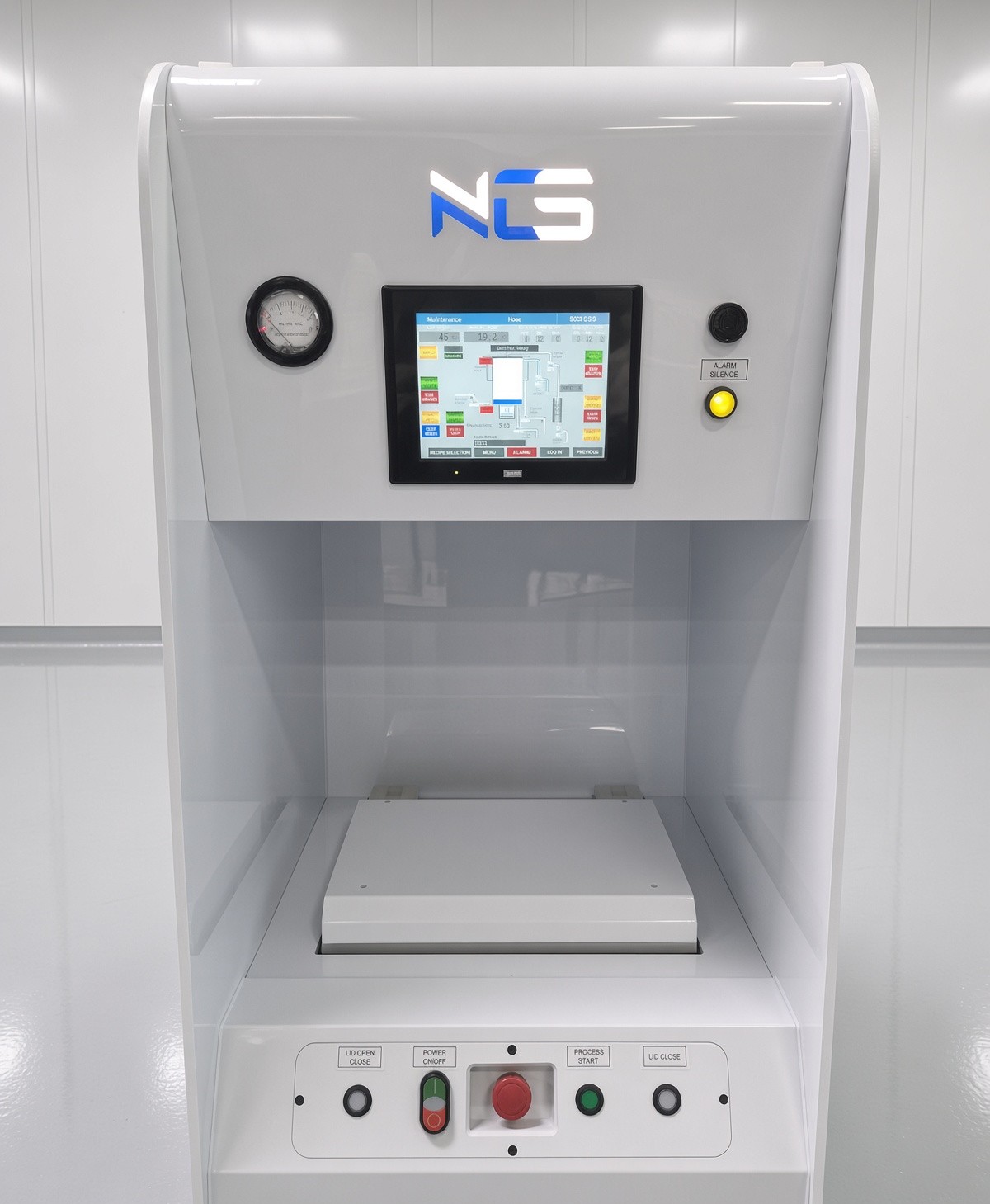

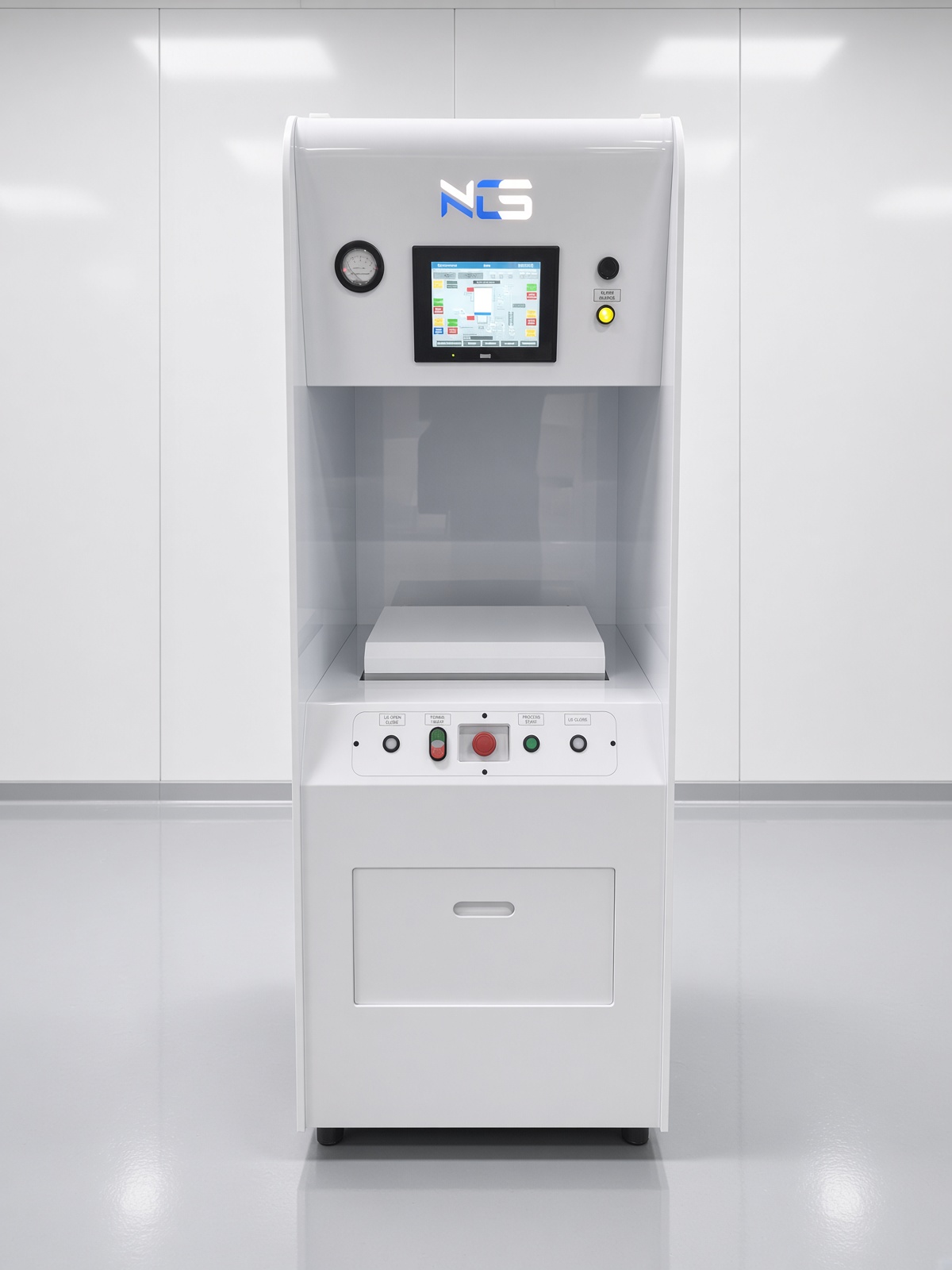

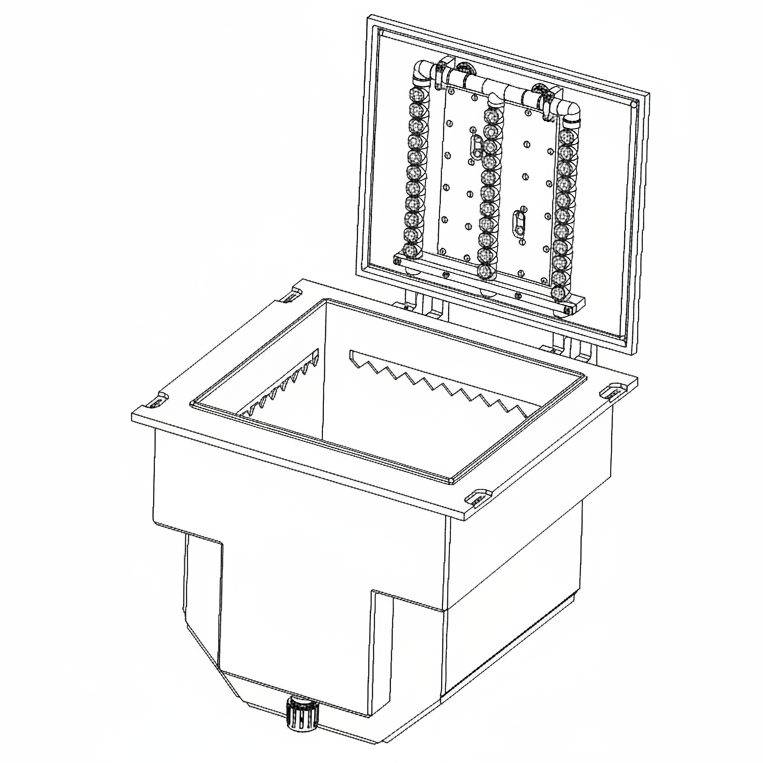

Standalone dryer module

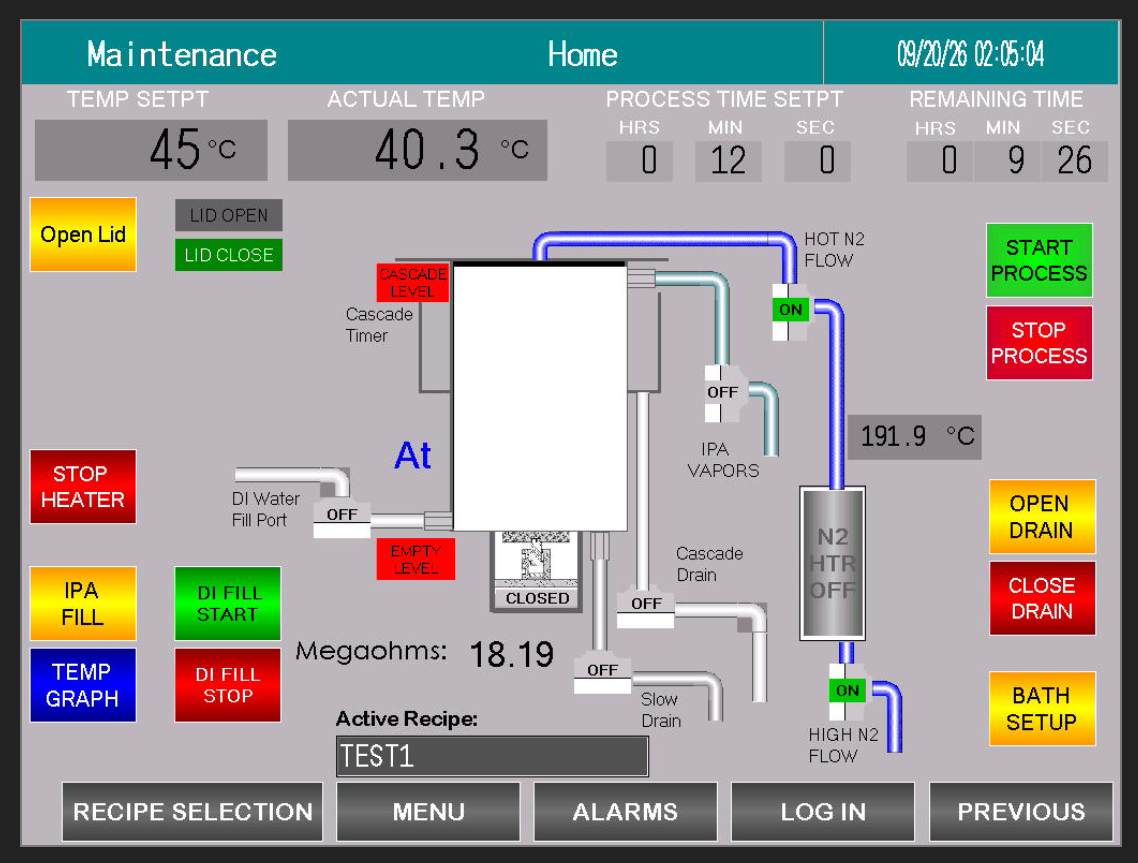

PLC-based automation with touchscreen HMI
Recipe-based drying profiles
Adjustable IPA vapor ramp rates
Alarm monitoring and interlocks
Facility bulk IPA supply
Manual fill through tear drop funnel
Construction & Materials
Primary Structure: FM-4910 CRP-1
Process Vessel: PVDF
Wetted Surfaces: High-purity PFA / PTFE
Exhaust Interface: Facility exhaust compatible with IPA vapor processes
Safety: Integrated interlocks, vapor monitoring, and EMO support
Applications
Semiconductor wafer processing
Advanced packaging and compound semiconductors
MEMS and sensor fabrication
Optics and precision substrates
Post-clean drying for critical surface applications
Ready to configure your Delta Series?
Submit a Request for Quote to start a conversation with our application engineers. We'll help you find the right configuration for your specific process needs.
